Magnetic-bead-based isolation of viral RNA/DNA and bacterial DNA from fluids

The NucleoMag Pathogen kit is designed for the isolation of viral RNA/DNA and bacterial DNA from cell-free bodily fluids such as serum or plasma, blood, homogenized tissue sample suspensions, stool sample suspensions, and swab washes. The procedure is based on the reversible adsorption of nucleic acids to paramagnetic beads. Sample lysis is achieved by incubation with a lysis buffer containing chaotropic ions and supplemented by Proteinase K digestion. Nucleic acids are bound to the paramagnetic beads via addition of NucleoMag beads and binding buffer to the lysate. After magnetic separation with the NucleoMag Separator, the paramagnetic beads are washed with our specialized Wash Buffer to remove contaminants and salts.

Reagents and magnetic beads for isolation of 96 samples
One kit for all common clinical sample types
High sensitivity
Reliable nucleic acid isolation—suitable even for low viral titers

NucleoMag principle Procedure Example data

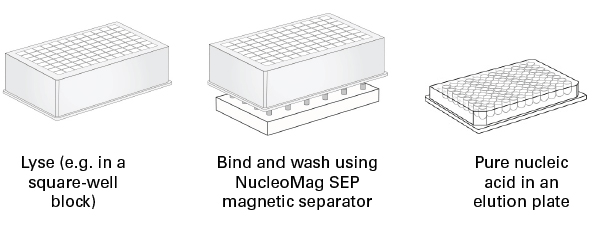

NucleoMag principle

The NucleoMag family of products is based on magnetic bead technology. Nucleic acids are bound to the magnetic beads under chaotropic salt conditions, contaminants are washed away with ethanolic wash buffers, and pure RNA and DNA are eluted from the beads using elution buffer.

Procedure

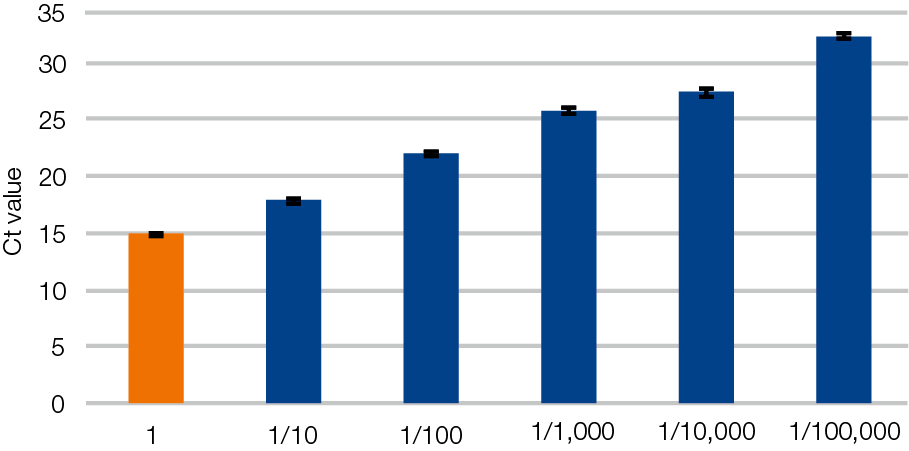

Example data

Related Products

Cat. #	Product	Size	Price
744210.4	NucleoMag® Pathogen	4 x 96 Preps	USD $1615.00
The NucleoMag Pathogen kit is designed for the isolation of viral RNA and DNA and bacterial DNA from cell-free body fluids such as serum or plasma, blood, homogenized tissue sample suspensions, stool sample suspensions, and swab washes. This kit provides reagents and magnetic beads for isolation of 4 x 96 samples. Notice to purchaser Our products are to be used for Research Use Only. They may not be used for any other purpose, including, but not limited to, use in humans, therapeutic or diagnostic use, or commercial use of any kind. Our products may not be transferred to third parties, resold, modified for resale, or used to manufacture commercial products or to provide a service to third parties without our prior written approval. Documents Image Data Back Magnetic separator for high-throughput nucleic acid purification The NucleoMag SEP magnetic separator is designed for high-throughput nucleic acid purification. Back Sensitivity screening for pathogen detection in human feces samples Sensitivity screening for pathogen detection in human feces samples. Dilution series of 10^-3–10^-4 of feces samples were prepared for sensitivity screening using three replicates. Nucleic acid extraction was performed with the NucleoMag Pathogen kit and the competitor kit "R". PCR analysis was performed using the RIDA GENE Viral Stool Panel I (R-Biopharm) and RealStar Clostridium difficile PCR Kit 1.0 (Altona Diagnostics). Back Sensitivity screening for Hepatitis B virus (HBV) and Hepatitis C virus (HCV) Sensitivity screening for Hepatitis B virus (HBV) and Hepatitis C virus (HCV). Dilution series (1:10) of human plasma (200 �l, with original virus titer as shown) were extracted in triplicate with the NucleoMag Pathogen kit and tested with the RealStar HBV PCR Kit 1.0 and the HCV RT-PCR Kit 1.0 (Altona Diagnostics). The NucleoMag Pathogen kit demonstrates a sufficient sensitivity for Hepatitis B virus (HBV) and Hepatitis C virus (HCV) detection in human plasma sample material. The internal control was extracted and recovered as expected. PCR inhibitors were not detected. Back Reliable detection of viral RNA Reliable detection of viral RNA. A Norovirus-positive stool sample and various dilutions of the sample were processed for viral RNA purification using the NucleoMag Pathogen kit and competitor kit "R". Purified viral RNA was analyzed by qPCR. Back 744210.4: NucleoMag Pathogen Back Superior detection of SARS-CoV-2 from human swab samples Viral RNA from 19 confirmed SARS-CoV-2-positive swab samples was extracted in duplicate using NucleoMag Pathogen and a competitor kit (Q). Viral RNA was quantified using a SARS-CoV-2-specific qRT-PCR assay (qScript™ XLT One-Step RT-qPCR ToughMix® + nCoV IP4 assay; Institute Pasteur, Paris). For each sample tested, the resulting CT values indicated that the NucleoMag Pathogen kit performed as well as (3/19 samples), or better than the competitor kit (16/19 samples). For two samples tested, detection of SARS-CoV-2 RNA was possible with NucleoMag Pathogen but not with the competitor kit. Back Consistent qRT-PCR amplification of SARS-CoV-2 RNA extracted from different sample types using NucleoMag Pathogen Dilution series were prepared for three different sample types (nasal swab, oral swab, saliva) using inactivated SARS-CoV-2 virus. Viral RNA was extracted using NucleoMag Pathogen on a KingFisher Flex system and the RNA was quantified by qRT-PCR (AgPath-ID™ One-Step RT-PCR mix + nCoV IP4 assay, Institute Pasteur, Paris). For each sample type, viral RNA was detected consistently and reliably over a 5-log range of dilutions. Back Superior detection of SARS-CoV-2 from human saliva samples Viral RNA was extracted from 200-μl inputs of diluted SARS-CoV-2-positive saliva samples in duplicate using NucleoMag Pathogen (MN) and the MagMAX™ Viral RNA Isolation Kit (T), respectively, and quantified by qRT-PCR. For each dilution analyzed, NucleoMag Pathogen provided superior assay sensitivity as compared to the MagMAX kit.
744210.1	NucleoMag® Pathogen	1 x 96 Preps	USD $467.00
The NucleoMag Pathogen kit is designed for the isolation of viral RNA and DNA and bacterial DNA from cell-free body fluids such as serum or plasma, blood, homogenized tissue sample suspensions, stool sample suspensions, and swab washes. This kit provides reagents and magnetic beads for isolation of 96 samples. Notice to purchaser Our products are to be used for Research Use Only. They may not be used for any other purpose, including, but not limited to, use in humans, therapeutic or diagnostic use, or commercial use of any kind. Our products may not be transferred to third parties, resold, modified for resale, or used to manufacture commercial products or to provide a service to third parties without our prior written approval. Documents Image Data Back Magnetic separator for high-throughput nucleic acid purification The NucleoMag SEP magnetic separator is designed for high-throughput nucleic acid purification. Back Sensitivity screening for pathogen detection in human feces samples Sensitivity screening for pathogen detection in human feces samples. Dilution series of 10^-3–10^-4 of feces samples were prepared for sensitivity screening using three replicates. Nucleic acid extraction was performed with the NucleoMag Pathogen kit and the competitor kit "R". PCR analysis was performed using the RIDA GENE Viral Stool Panel I (R-Biopharm) and RealStar Clostridium difficile PCR Kit 1.0 (Altona Diagnostics). Back Sensitivity screening for Hepatitis B virus (HBV) and Hepatitis C virus (HCV) Sensitivity screening for Hepatitis B virus (HBV) and Hepatitis C virus (HCV). Dilution series (1:10) of human plasma (200 �l, with original virus titer as shown) were extracted in triplicate with the NucleoMag Pathogen kit and tested with the RealStar HBV PCR Kit 1.0 and the HCV RT-PCR Kit 1.0 (Altona Diagnostics). The NucleoMag Pathogen kit demonstrates a sufficient sensitivity for Hepatitis B virus (HBV) and Hepatitis C virus (HCV) detection in human plasma sample material. The internal control was extracted and recovered as expected. PCR inhibitors were not detected. Back Reliable detection of viral RNA Reliable detection of viral RNA. A Norovirus-positive stool sample and various dilutions of the sample were processed for viral RNA purification using the NucleoMag Pathogen kit and competitor kit "R". Purified viral RNA was analyzed by qPCR. Back Superior detection of SARS-CoV-2 from human swab samples Viral RNA from 19 confirmed SARS-CoV-2-positive swab samples was extracted in duplicate using NucleoMag Pathogen and a competitor kit (Q). Viral RNA was quantified using a SARS-CoV-2-specific qRT-PCR assay (qScript™ XLT One-Step RT-qPCR ToughMix® + nCoV IP4 assay; Institute Pasteur, Paris). For each sample tested, the resulting CT values indicated that the NucleoMag Pathogen kit performed as well as (3/19 samples), or better than the competitor kit (16/19 samples). For two samples tested, detection of SARS-CoV-2 RNA was possible with NucleoMag Pathogen but not with the competitor kit. Back Consistent qRT-PCR amplification of SARS-CoV-2 RNA extracted from different sample types using NucleoMag Pathogen Dilution series were prepared for three different sample types (nasal swab, oral swab, saliva) using inactivated SARS-CoV-2 virus. Viral RNA was extracted using NucleoMag Pathogen on a KingFisher Flex system and the RNA was quantified by qRT-PCR (AgPath-ID™ One-Step RT-PCR mix + nCoV IP4 assay, Institute Pasteur, Paris). For each sample type, viral RNA was detected consistently and reliably over a 5-log range of dilutions. Back Superior detection of SARS-CoV-2 from human saliva samples Viral RNA was extracted from 200-μl inputs of diluted SARS-CoV-2-positive saliva samples in duplicate using NucleoMag Pathogen (MN) and the MagMAX™ Viral RNA Isolation Kit (T), respectively, and quantified by qRT-PCR. For each dilution analyzed, NucleoMag Pathogen provided superior assay sensitivity as compared to the MagMAX kit. Back 744210.1: NucleoMag Pathogen
744900	NucleoMag® SEP	Each	USD $810.00
NucleoMag SEP magnetic separator, for use with 96-well plates Notice to purchaser Our products are to be used for Research Use Only. They may not be used for any other purpose, including, but not limited to, use in humans, therapeutic or diagnostic use, or commercial use of any kind. Our products may not be transferred to third parties, resold, modified for resale, or used to manufacture commercial products or to provide a service to third parties without our prior written approval. Documents You May Also Like Image Data Back NucleoMag SEP: magnetic separator for use with 96-well plates NucleoMag SEP: magnetic separator for use with 96-well plates. Back 744900: NucleoMag SEP
740481	Square-well Block	4 Plates	USD $44.00
Square-well Block (4) 96-well blocks with square wells for use with NucleoMag SEP pack of 4 Notice to purchaser Our products are to be used for Research Use Only. They may not be used for any other purpose, including, but not limited to, use in humans, therapeutic or diagnostic use, or commercial use of any kind. Our products may not be transferred to third parties, resold, modified for resale, or used to manufacture commercial products or to provide a service to third parties without our prior written approval. Documents Image Data Back 740481-Square-well-Block-product
740481.24	Square-well Block	24 Plates	USD $253.00
Square-well Block (24) 96-well blocks with square wells for use with NucleoMag SEP pack of 24 Notice to purchaser Our products are to be used for Research Use Only. They may not be used for any other purpose, including, but not limited to, use in humans, therapeutic or diagnostic use, or commercial use of any kind. Our products may not be transferred to third parties, resold, modified for resale, or used to manufacture commercial products or to provide a service to third parties without our prior written approval. Documents Image Data Back 740481.24: Square-well Block
740486.24	Elution Plate, U-bottom	24 Sets	USD $142.00
Elution Plate U-bottom (24) 96-well microplates with 300 µL U-bottom wells, including Self-adhering Foils pack of 24 Notice to purchaser Our products are to be used for Research Use Only. They may not be used for any other purpose, including, but not limited to, use in humans, therapeutic or diagnostic use, or commercial use of any kind. Our products may not be transferred to third parties, resold, modified for resale, or used to manufacture commercial products or to provide a service to third parties without our prior written approval. Image Data Back 740486.24: Elution Plate, U-bottom

Isolation of viral RNA and DNA and bacterial DNA from cell-free body fluids,homogenized tissue sample suspensions, stool sample suspensions, and swab washes

RNA and DNA isolation from pathogens

The NucleoMag Pathogen kit is designed for the rapid manual and automated small-scale isolation of viral RNA and DNA and bacterial DNA from cell-free body fluids such as serum or plasma, blood, homogenized tissue sample suspensions, stool sample suspensions, and swab washes.
