Product overview

NucleoMag Blood

The NucleoMag Blood 200 µL kit (96-well format) and NucleoMag Blood 3 mL kit (24-well format) are designed for the rapid parallel purification of genomic DNA from whole blood. After lysis of the blood cells, genomic DNA is selectively bound to NucleoMag B-Beads. Contaminants are washed away, and the DNA can be eluted from the beads under low-salt conditions. Since the magnetic bead technology provides a closed system (no transfer of sample from one well to another is necessary during the preparation), the risk of cross-contamination is reduced. NucleoMag technology can easily be adapted to common liquid handling instruments. It can be used with either static-pin separators (e.g., NucleoMag SEP) or magnetic separators integrated into robotic workstations.

  • Single-tube procedure minimizes risk of cross-contamination
  • Small elution volumes: ≥50 µl for NucleoMag Blood 200 µL; ≥1 ml for NucleoMag Blood 3 mL
  • Complete processing is possible at room temperature
  • Easily adapted to automated use
  • Consistently high yields

At a glance

NucleoMag Blood 200 µL (Cat. # 744501.1 and 744501.4)
 NucleoMag Blood 3 mL (Cat. # 744502.1)
Technology Magnetic bead technology Magnetic bead technology
Format Highly reactive superparamagnetic beads Highly reactive superparamagnetic beads
Processing Manual or automated Automated*
Starting material 200 µl whole blood (fresh or frozen, EDTA or citrate treated) 3 ml whole blood (fresh or frozen, EDTA or citrate treated)
Fragment size 300 bp to ~50 kb 300 bp to ~50 kb
Typical yield  2–8 µg (from 200 µl of blood) 100–130 µg (from 3 ml of blood)
A260/280 1.6–1.9 1.6–1.9
Elution volume 50–1,000 µl 1 ml
Preparation time 45 min/96 preps* 60 min/24 preps*
Binding capacity Approx. 0.4 µg/µl Approx. 0.4 µg/µl

*Established on KingFisher Flex.

Highly reproducible DNA yields

Isolation of DNA from fresh or frozen 200-µl human blood samples using the NucleoMag Blood 200 µL kit provided highly reproducible yields (Figure 1).

Highly reproductible DNA yields from 200 µl human blood samples

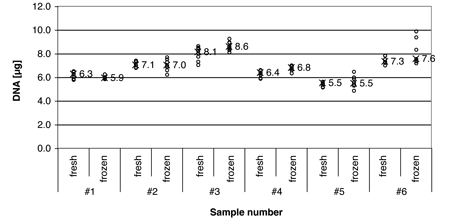

Figure 1. Highly reproductible DNA yields from fresh or frozen human blood samples using the NucleoMag Blood 200 µL kit. Samples were taken from six different donors (#1–#6). Aliquots from each sample were purified directly (fresh), or after storage at –20°C for one day (frozen). For each aliquot, eight extractions were performed, and the indicated value represents the median yield (µg) for all eight extractions.

Isolation of high-integrity DNA

The NucleoMag Blood 3 mL kit was used to extract DNA of high integrity from blood samples obtained from 24 individual donors, as shown by agarose gel analysis (Figure 2).

Isolation of high-integrity DNA from human blood

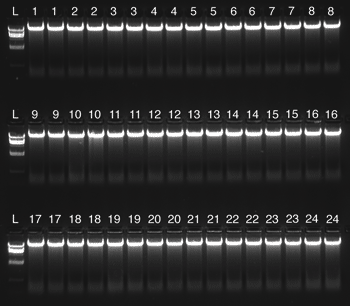

Figure 2. Isolation of high-integrity DNA from human blood using the NucleoMag Blood 3 mL kit. DNA from 24 individual human blood donors (Lanes 1–24) was extracted in duplicate and analyzed on a 0.7 % (w/v) TAE agarose gel stained with ethidium bromide. Lane L: λHindIII size marker. The gDNA migrates as a distinct band with a molecular weight >23.5 kb, indicating that it is of high integrity.

High yields of high-purity DNA

High yields of highly pure DNA were obtained from a pool of blood samples extracted using the NucleoMag Blood 3 mL kit (Figure 3).

High-yield, high-purity DNA from 3-ml human blood samples

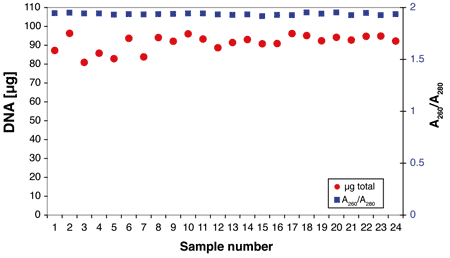

Figure 3. High yields of highly pure DNA were isolated from 3-ml human blood samples using the NucleoMag Blood 3 mL kit. 24 replicates of 3 ml each were extracted using the NucleoMag Blood 3 mL kit.

Protocol

The NucleoMag Blood 200 µL procedure

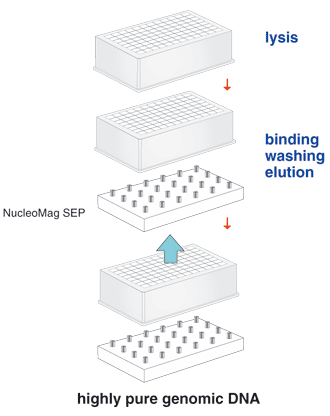

Figure 4. The NucleoMag Blood 200 µL procedure. NucleoMag technology can easily be adapted to common liquid handling instruments using either static-pin separators (e.g., NucleoMag SEP) or magnetic separators integrated into robotic workstations.

Related Products

Cat. # Product Size Price License Quantity Details
744501.4 NucleoMag® Blood 200 µL 4 x 96 Preps USD $1150.00

NucleoMag Blood 200 µL (4x96) 4x 96 preps for the purification of genomic DNA from blood - NucleoMag B-Beads, Buffers, Proteinase K

Notice to purchaser

Our products are to be used for Research Use Only. They may not be used for any other purpose, including, but not limited to, use in humans, therapeutic or diagnostic use, or commercial use of any kind. Our products may not be transferred to third parties, resold, modified for resale, or used to manufacture commercial products or to provide a service to third parties without our prior written approval.

Documents Image Data
744501.1 NucleoMag® Blood 200 µL 1 x 96 Preps USD $339.00

NucleoMag Blood 200 µL (1x 96) 96 preps for the purification of genomic DNA from blood - NucleoMag B-Beads, buffers, Proteinase K

Notice to purchaser

Our products are to be used for Research Use Only. They may not be used for any other purpose, including, but not limited to, use in humans, therapeutic or diagnostic use, or commercial use of any kind. Our products may not be transferred to third parties, resold, modified for resale, or used to manufacture commercial products or to provide a service to third parties without our prior written approval.

Documents Image Data
744502.1 NucleoMag® Blood 3mL 96 Preps USD $2115.00

NucleoMag Blood 3 mL is designed for rapid, parallel purification of genomic DNA from 3-ml inputs of whole blood in a 24-well format. The kit is compatible with fresh or frozen blood, as well as blood that has been treated with EDTA or citrate, and typically yields up to 100–130 µg of pure genomic DNA per sample. Purified DNA obtained with the kit typically has a A260/A280 ratio ≥1.6–1.9, and is ready for use in PCR, Southern blotting, or any kind of enzymatic reaction.

The NucleoMag Blood 3 mL procedure is based on reversible adsorption of nucleic acids to paramagnetic beads under appropriate buffer conditions. After lysis of blood cells, genomic DNA is selectively bound to the NucleoMag B-Beads. Contaminants are washed away and the DNA can be eluted from the beads under low-salt conditions. Since the magnetic bead technology provides a closed system (no transfer of sample from one well to another is necessary during the preparation), the risk of cross-contamination is reduced. NucleoMag technology can be easily adapted to common liquid-handling instruments: it can be used either with static-pin separators (e.g., NucleoMag SEP) or magnetic separators integrated into robotic workstations. NucleoMag Blood 3 ml is recommended for use with the KingFisher Flex 24 instrument, which enables automated processing of 24 samples in approximately 1 hour.

Notice to purchaser

Our products are to be used for Research Use Only. They may not be used for any other purpose, including, but not limited to, use in humans, therapeutic or diagnostic use, or commercial use of any kind. Our products may not be transferred to third parties, resold, modified for resale, or used to manufacture commercial products or to provide a service to third parties without our prior written approval.
