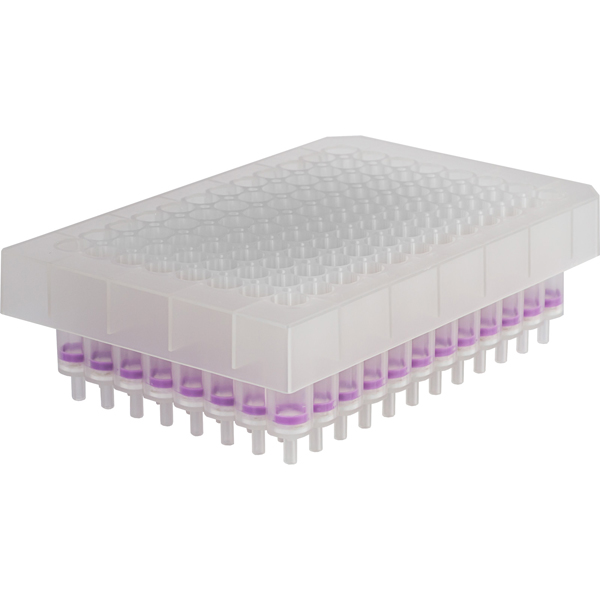

96-well plasmid binding and filter plates
NucleoSpin 96 Plasmid Binding Plates and NucleoSpin 96 Plasmid Filter Plates use advanced silica-membrane technology in combination with efficient lysate filtration. Crude lysates can be cleared with NucleoSpin Plasmid Filter Plates, and DNA can be reversibly bound to the silica membrane in NucleoSpin Plasmid Binding Plates.
- Process up to 5 ml of bacterial culture per plate well
- NucleoSpin 96 Filter Plate for convenient filtration of bacterial lysates
- Processing can be done under vacuum or by centrifugation
- Suitable for automated processing under vacuum
- For use with suitable liquid-handling instruments
|Lysate clarification||96-well filter plate|
|Starting material||1–5 ml E. coli culture|
|Vector size||<15 kb|
|Typical yield||4–6 µg/ml E. coli culture|
|Elution volume||75–150 µl|
|Preparation time||45 min/plate|
|Binding capacity||20 µg|
Additional product information
Please see the product's Certificate of Analysis for information about storage conditions, product components, and technical specifications. Please see the Kit Components List to determine kit components. Certificates of Analysis and Kit Components Lists are located under the Documents tab.
Isolate up to 700 µg of transfection-grade plasmid DNA in only 35 minutes
Using novel chemistry and a unique snap-off column design, NucleoSnap Plasmid Midi provides rapid purification of up to 700 µg of transfection-grade plasmid. The snap-off columns allow processing of lysate from large 50-ml culture volumes, and multiple samples can be rapidly processed by vacuum using our NucleoVac 24 Vacuum Manifold.Learn more Other plasmid kits
