Chloramphenicol-resistant pUC plasmids

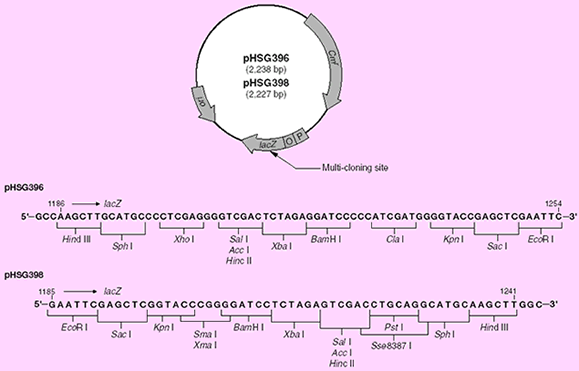

The chloramphenicol-resistant pUC plasmids pHSG396 and pHSG398 contain the chloramphenicol resistance gene, the pMB1-derived origin of replication (ori), and the beta-galactosidase coding gene lacZ. These plasmids also contain a pUC18-derived multiple cloning site (MCS) within the lacZ gene, enabling recombinant clones to be verified through culture plates containing IPTG and X-Gal. High target-gene expression is enabled by the presence of the lac promoter on both the pHSG396 and pHSG398 plasmids.
Both pHSG 396 and pHSG 398 can be analyzed via dideoxy DNA sequencing using an M13 primer, and large recombinant chloramphenicol resistant pUC plasmids may be analyzed using the Deletion Kit for Kilo-Sequencing.
- Form: 10 mM Tris-HCl (pH 8.0), 1 mM EDTA
- Concentration: 250–1,000 µg/ml
- lac promoter-enabled target gene cloning and expression
- DNA sequencing using an M13 primer
- Long DNA sequencing using Takara's Deletion Kit for Kilo-Sequencing
|Plasmid||Entry name||Accession no.|
*Except for the MCS, pHSG396 and pHSG398 have the same sequence as pHSG399.
- pHSG396: 2,238 bp
- pHSG398: 2,227 bp
Takeshita, S., Sato, M., Toba, M. & Masahashi, W. High-copy-number and low-copy-number plasmids for lacZα-complementation and chloramphenicol-or kanamycin-resistance selection. Gene 61, 63–74 (1987).
Additional product information
Please see the product's Certificate of Analysis for information about storage conditions, product components, and technical specifications. Please see the Kit Components List to determine kit components. Certificates of Analysis and Kit Components Lists are located under the Documents tab.
